Precision-engineered for dynamic stage effects,these lights create stunning patterns that add depth and intrigue to any performance.
Description:
Cutting lamp Framing Light Profile Light Beam Light

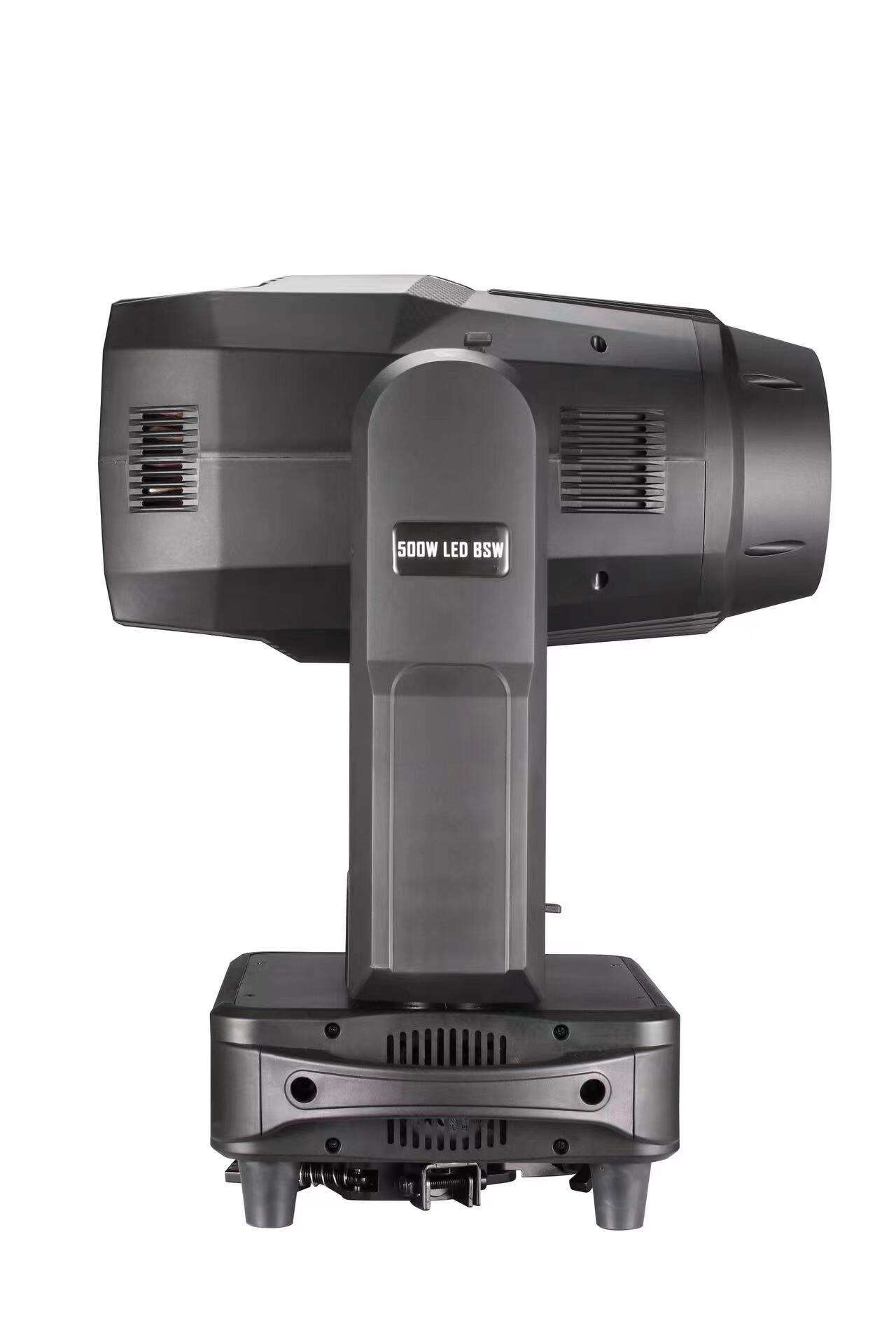

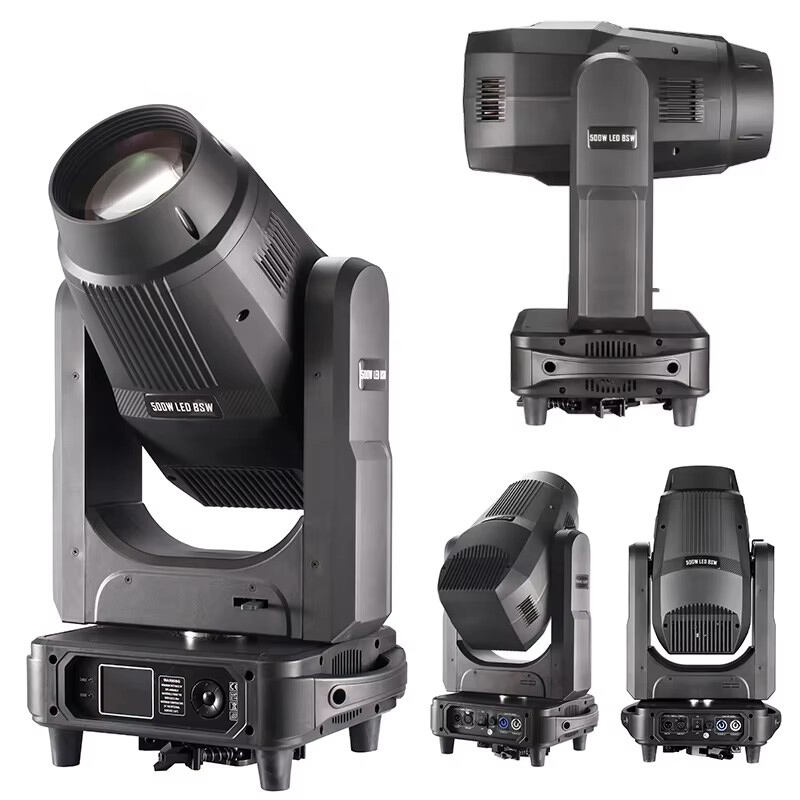

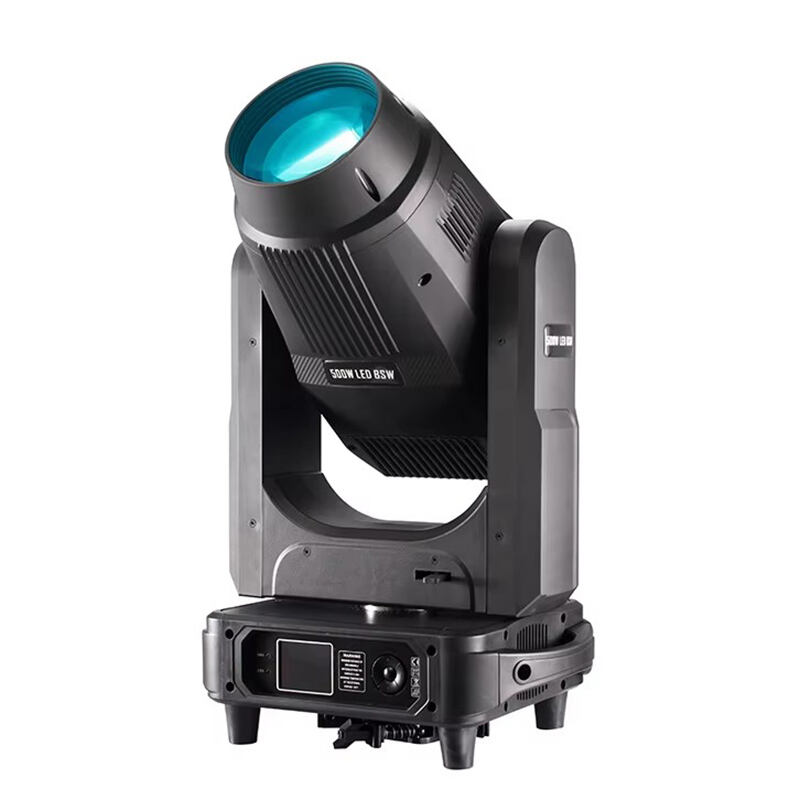

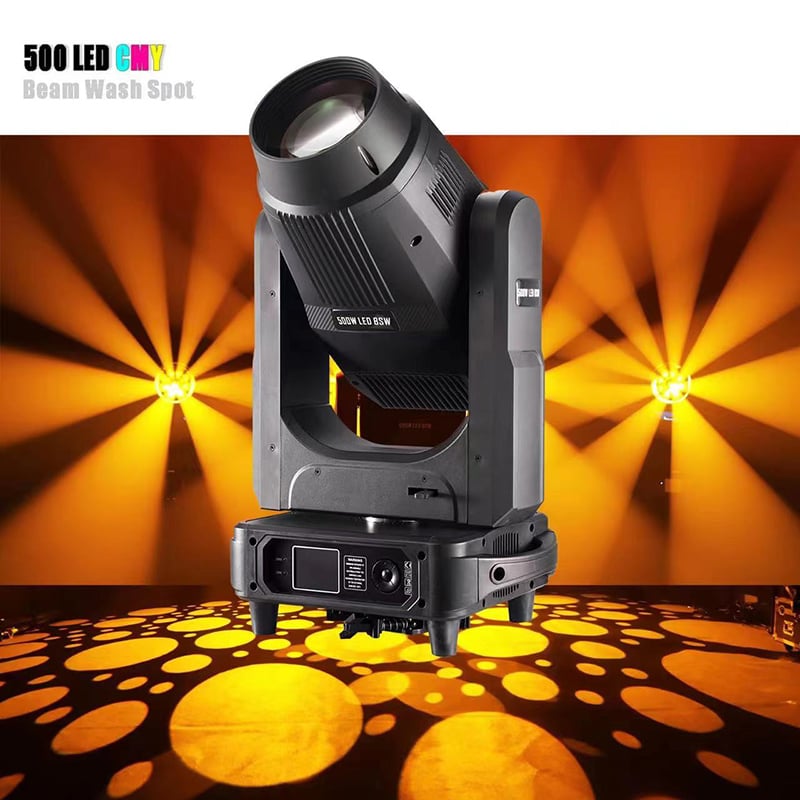

500W BSW 3In1 LED Beam Moving Head Wash Light Gobo Cutting Framing Profile Light With CTO CMY Effect
Applications:Concerts, shows, bars, clubs, etc
Specifications:
| Rated power： | 600W |
| Input voltage： | 540°(16 bit precision scanning) |
| Pan:： | 540°(16 bit precision scanning) |
| Tilt:： | 270°(16 bit precision scanning)electronic error correction |
| Dimming system: | 0-100% linear adjustment |
Three Specifications：

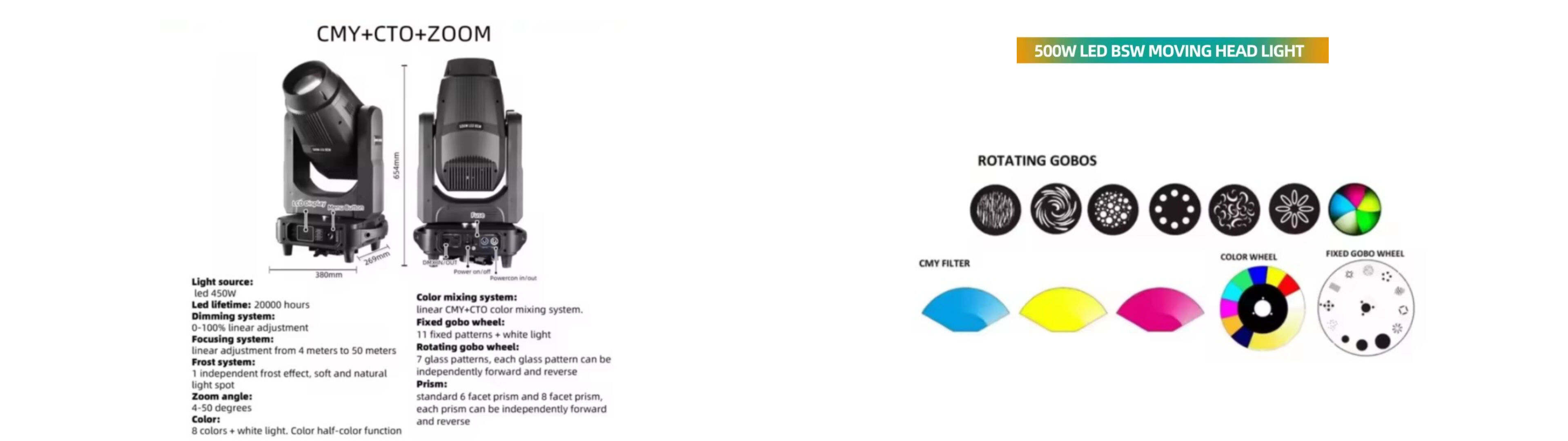

| BSW3IN1 | |
| Light source specification: | Led 500W |
| Channel mode: | 23 channels |
| Focusing system: | Linear adjustment from 4 meters to 50 meters |
| Frost system: | 1 independent frost effect, soft and natural light spot |
| Zoom angle: | 3.5-50 degrees |
| High-speed strobe: | 0-30 times/sec. Adjustable speed strobe effect. Strobe macro function |
| Color: | 8 colors + white light. Color half-color function |
| Color mixing system: | linear CMY+CTO color mixing system. |
| Fixed gobo wheel: | 11 fixed patterns + white light |
| Rotating gobo wheel: | 7 glass patterns, each glass pattern can be independently forward and reverse |
| Prism: | Standard 6 facet prism and 8 facet prism, each prism can be independently forward and reverse |
| Macro function: | Console reset function, self-propelled mode, master-slave mode |
| Control signal: | International standard DMX512. With RDM function, online software upgrade is available, dial address code |
| Product net weight: | 22.5KG |
| Product size: | 380*269*654mm (L*W*H) |

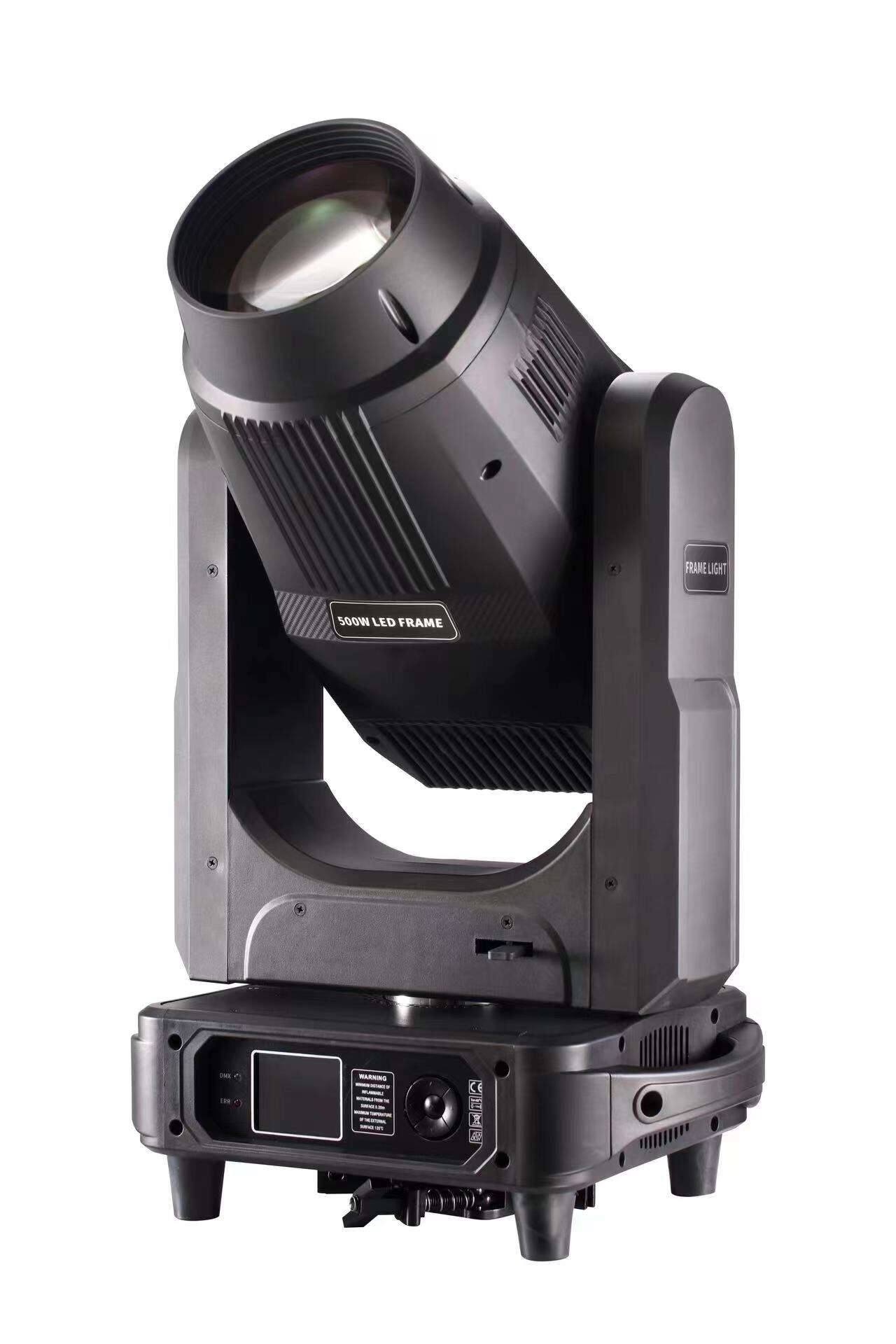

| Profile+CMY | |
| Light source specification: | led 450W |
| Light source life: | 20000 hours |
| Channel mode: | 26 channels |
| Zoom angle: | 6-48 degrees |
| Frost system: | 1 independent frost effect, soft and natural light spot |
| Color: | 6colors + white light. Color half-color function |
| Color mixing system: | Linear CMYcolor mixing system. |
| Framing system: |
4 Individually positionable Shutter Blades,each piece can be closed separately and can berotated+/-90° degrees |
| Product net weight: | 23KG |
| Product size: | 38*27*67CM (L*W*H) |
| Profile+Gobo | |
| Light source specification: | led module |
| Channel mode: | 26 channels |
| Zoom system: | 1 independent zoom effect, soft and natural light spot |
| Magnification angle: | 6-48 degrees |
| High-speed strobe: | 0-30 times/sec. Adjustable speed strobe effect. Strobe macro function |
| Color: | 13 colors + white light. + linear CTO color mixing system. |
| Rotating pattern: | 7 glass patterns, each glass pattern can be independently forward and reverse |
| Macro function: | Console reset function, self-propelled mode, master-slave mode |
| Control signal: | International standard DMX512. With RDM function, online software upgrade is available, dial address code |
| Product net weight: | 23KG |
| Product size: | 38*27*65CM (L*W*H) |
