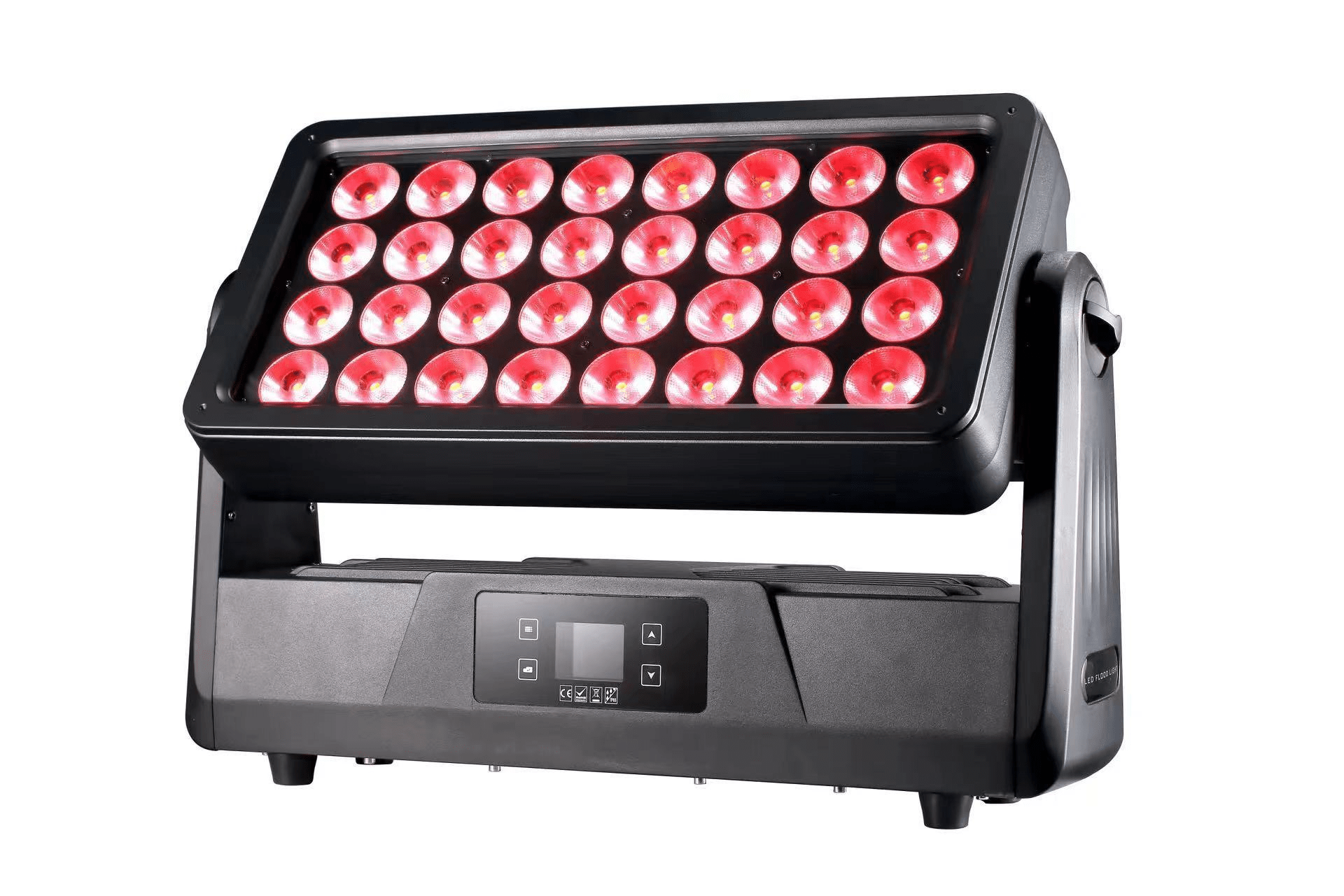

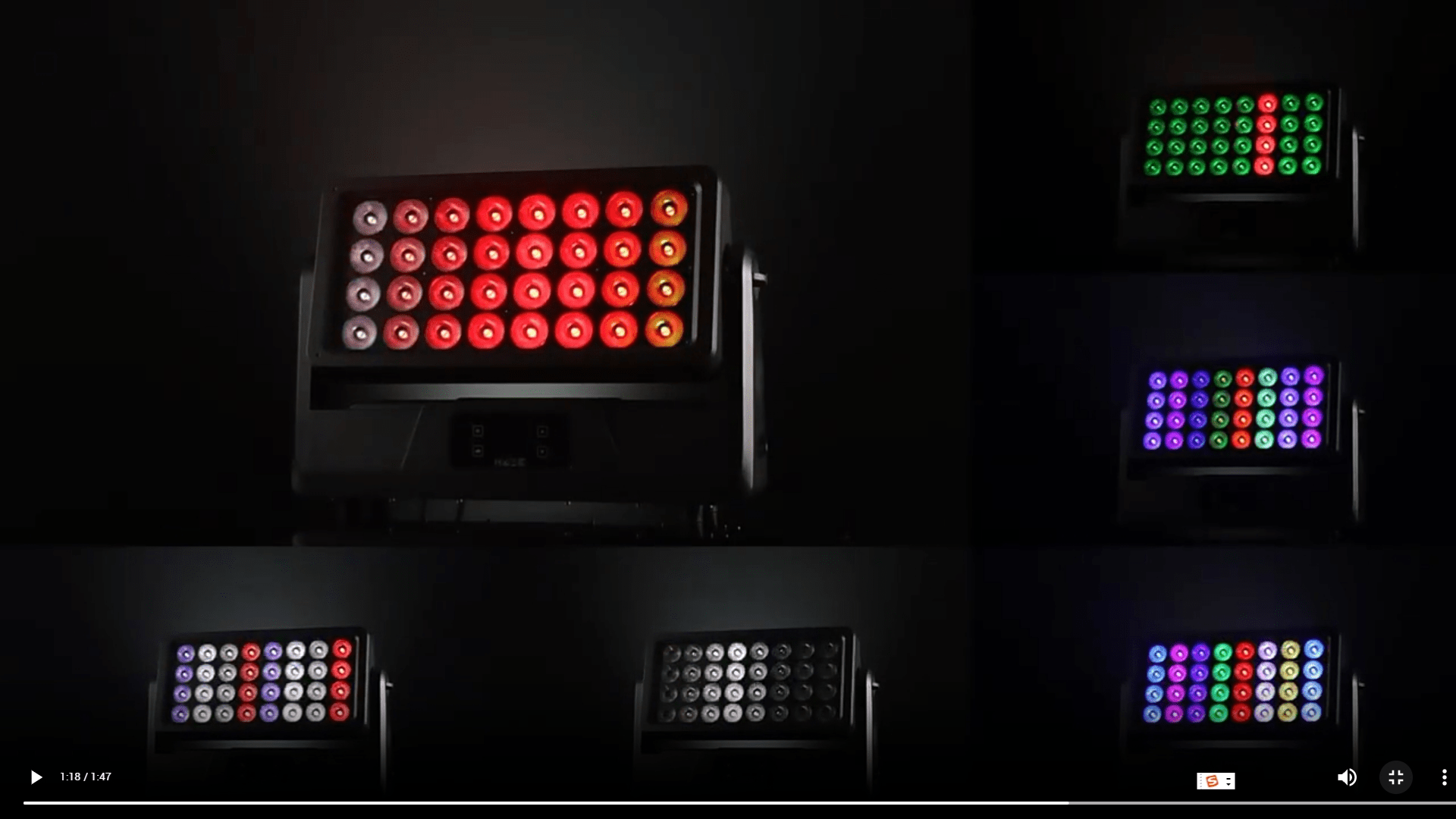

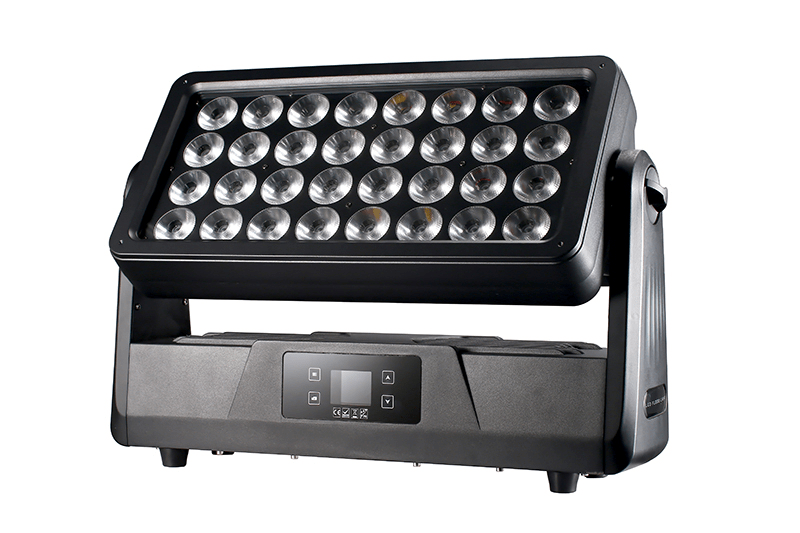

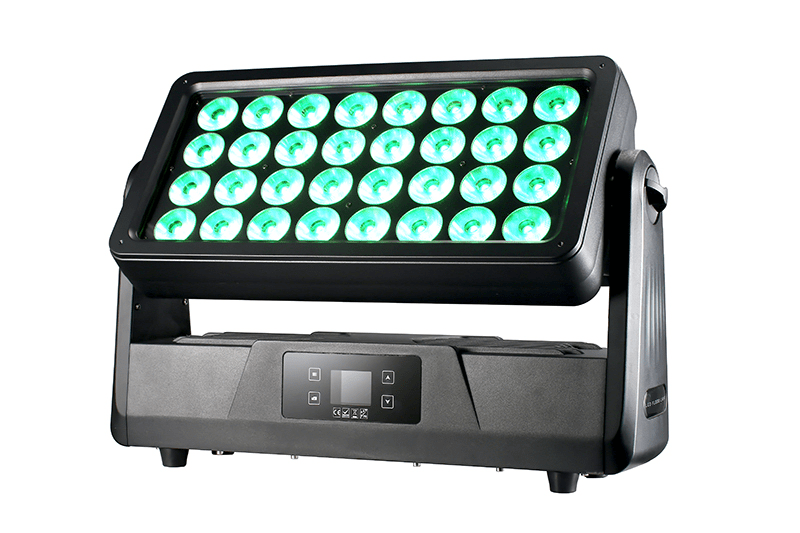

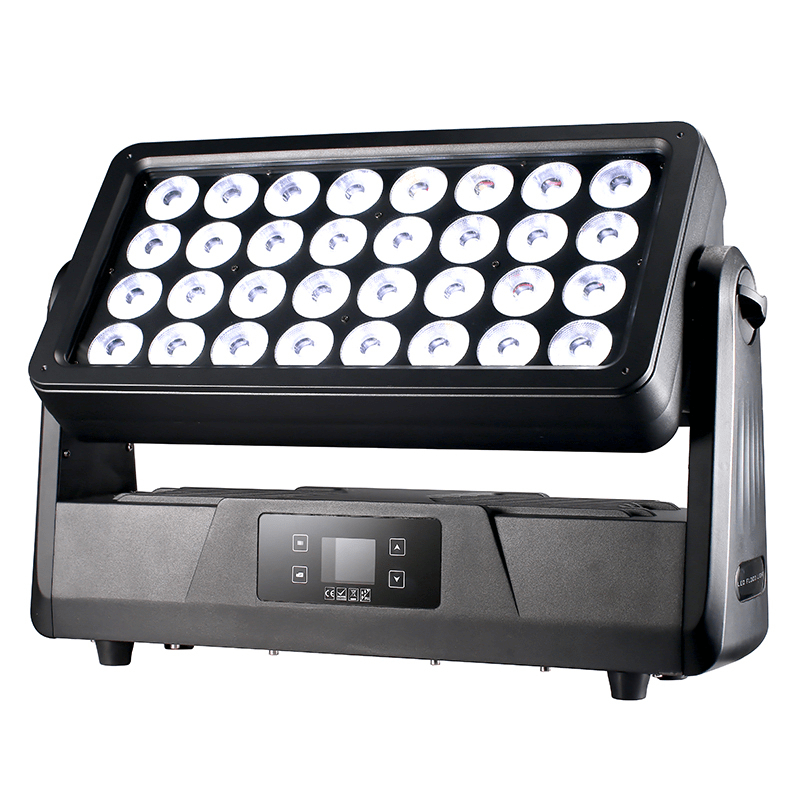

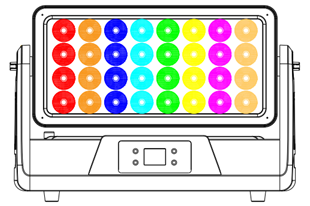

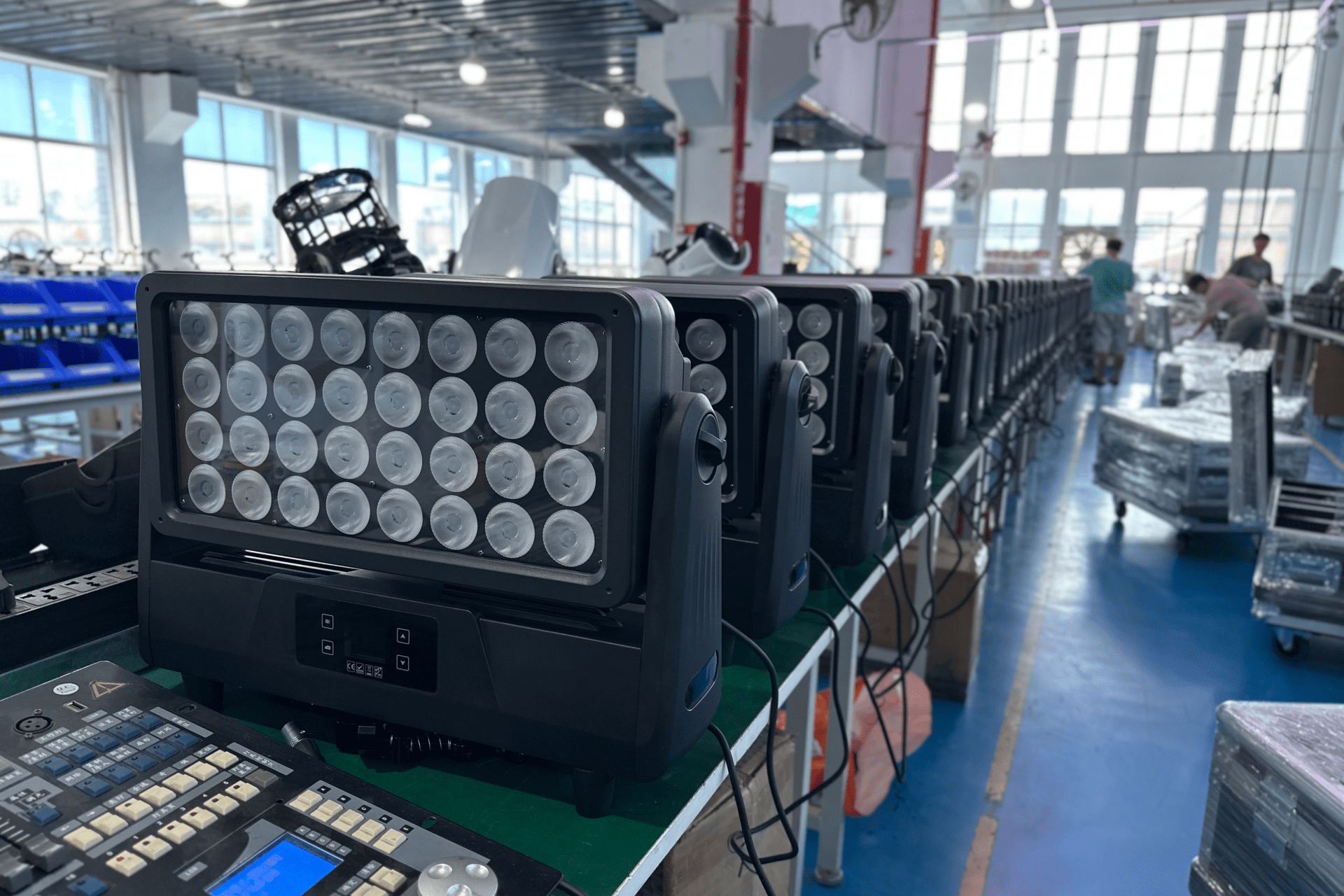

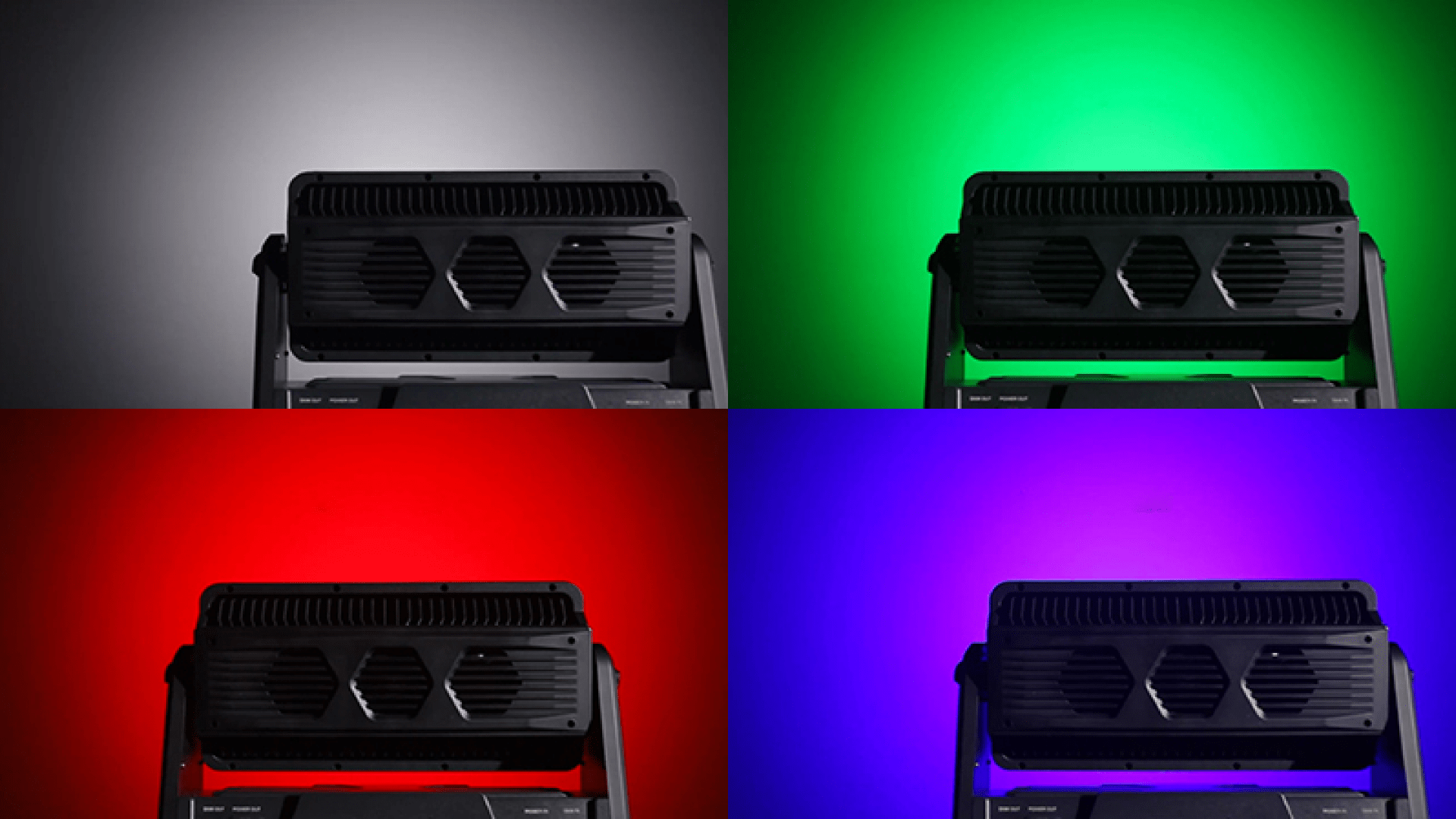

LED Outdoor Wash Light
32X40W RGBW 4in1 LED
USER MANUAL
Thank you very much for choosing our product. For safety purpose, please read this manual carefully before your operation. This manual included installation and using information. Please install and operate it according to this manual.
Part 1 PRDUCT
This product is designed for indoor/outdoor use. Suitable applications include wash or effect lighting for architectural, stage or nightclub applications. This product can also be installed for use in signage and advertising using the dynamic functions available with DMX512 control. Direct input of DMX512 signal allows the units to be controlled from any DMX512 controller. This product can be operated as a single unit or in multiple units for large applications.
1.2 Technical Specifications
Voltage: AC100-240V, 50/60Hz
Power: 1000W
Light Source: 32X40W RGBW 4in1 LED

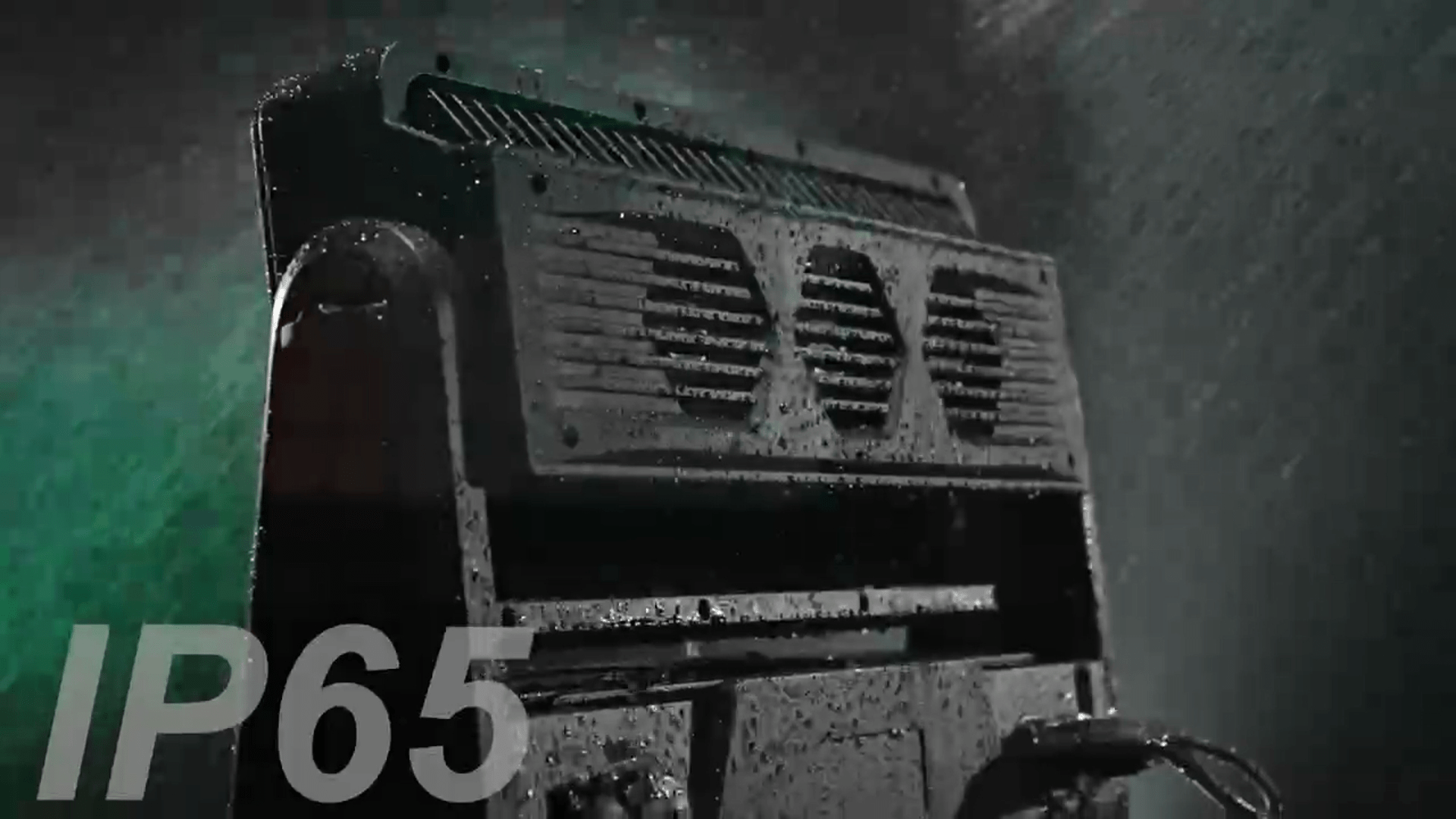

IP Rating: IP65
Lifespan: around 100,000 hours
Housing: Die-casting aluminum, powder-coated finish
Control: DMX 512,STAG/ 4/6/8/32/40/HSV CH
Control Mode: DMX, Auto, Master/Slave mode
Dimmer: 0-100%
Strobe: 0-20Hz
Beam angle: 25º (15°/45°/60°optional)
Display: LCD color display with 4 touch buttons
N.W: 17KG
1.3 Safety Warning
IMPORTANT:
ALWAYS READ THE USER MANUAL BEFORE OPERATION. PLEASE CONFIRM THAT THE POWER SUPPLY STATED ON THE PRODUCT IS THE SAME AS THE MAINS POWER SUPPLY IN YOUR AREA.
● This product must be installed by a qualified professional.
● Always operate the equipment as described in the user manual.
● A minimum distance of 0.5m must be maintained between the equipment and combustible surface.
● The product must always be placed in a well ventilated area.
● Always make sure that the equipment is installed securely.
● DO NOT stand close to the equipment and stare directly into the LED light source.
● Always disconnect the power supply before attempting and maintenance.
● Always make sure that the supporting structure is solid and can support the combined weight of the products.
● The earth wire must always be connected to the ground.
● Do not touch the power cables if your hands are wet.
ATTENTION:
● This product left the place of manufacture in perfect condition. In order to maintain this condition and for safe operation, the user must always follow the instructions and safety warnings described in this user manual.
● Avoid shaking or strong impacts to any part of the equipment.
● Make sure that all parts of the equipment are kept clean and free of dust.
● Always make sure that the power connections are connected correct and secure.
● If there is any malfunction of the equipment, contact your distributor immediately.
● When transferring the product, it is advisable to use the original packaging in which the product left the factory.
● Shields, lenses or ultraviolet screens shall be changed if they have become damaged to such an extent that their effectiveness is impaired.
● The lamp (LED) shall be changed if it has become damaged or thermally deformed.
PART 2 INSTALLATION
2.1 Mounting:
2.1-1 Hanging
The product can be mounted in a hanging position using the supporting bracket. The bracket should be secured to the mounting truss or structure using a standard mounting clamp. Please note that when hanging the unit a safety cable should also be used
.
2.1-2 Upright
The product can be mounted in an upright or sitting position using the supporting brackets.
NOTE:

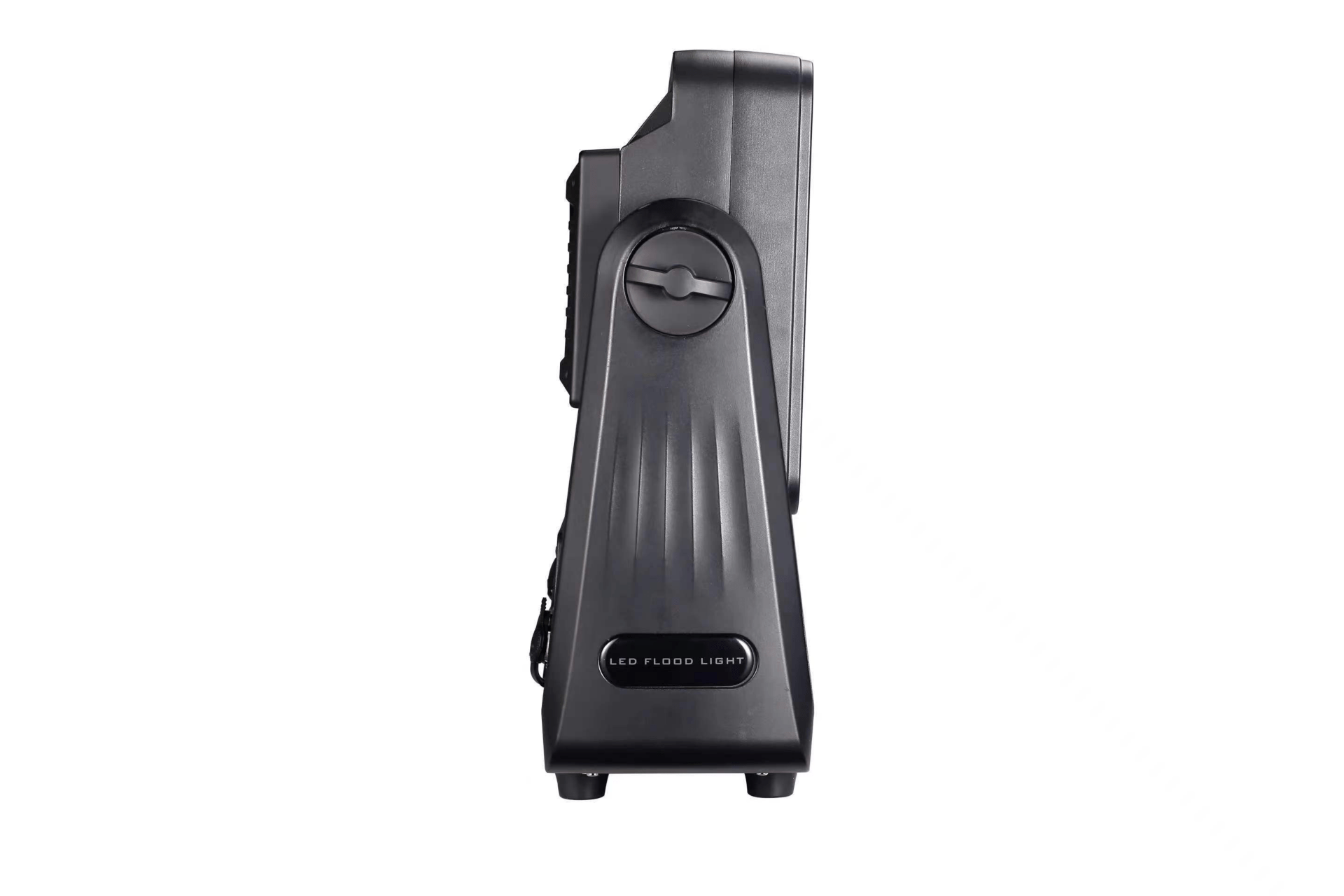

The product can be mounted at any angle and in any position. It is possible to further adjust the angle of the product using the two adjustment knobs located on the side of the fixture.
2.2 DMX Channel instruction
STAG (Standard)
CH |
Data |
Control function |
Instruction |
1 |
0-255 |
0~100% |
Master Dimmer |
2 |
0-13 |
no function (0Hz) No effect |
Strobe |
14-255 |
1~20Hz Strobe speed slow to fast |
||
3 |
0-255 |
0~100% |
Red |
4 |
0-255 |
0~100% |
Green |
5 |
0-255 |
0~100% |
Blue |
6 |
0-255 |
0~100% |
White |
7 |
0-10 |
no function |
Palette (foreground color sharing) |
11-30 |
Red - Yellow |
||
31-50 |
Yellow- Green |
||
51-70 |
Green-Cyan |
||
71-90 |
Cyan-Blue |
||
91-110 |
Blue-Magenta |
||
111-130 |
Magenta-Red |
||
131-150 |
Red-White |
||
151-255 |
Red 100%, Green 100%, Blue 100% |
||
8 |
0-10 |
Black |
Background palette |
11-30 |
Red - Yellow |
||
31-50 |
Yellow- Green |
||
51-70 |
Green-Cyan |
||
71-90 |
Cyan-Blue |
||
91-110 |
Blue-Magenta |
||
111-130 |
Magenta-Red |
||
131-150 |
Red-White |
||
151-255 |
Red 100%, Green 100%, Blue 100% |
||
9 |
0-255 |
0-100% |
Brightness of background color |
10 |
0-9 |
no function |
Auto-running control Auto 7-21 needs to open the front or back background palette |
10-19 |
Auto0 All cycling auto |
||
20-29 |
Auto1 whole 6-color jump |
||
30-39 |
Auto2 whole 6-color gradient |
||
40-49 |
Auto3 Whole 6-color pulse change |
||
50-59 |
Auto4 Colorful Flow |
||
60-69 |
Auto5 Colorful Convection |
||
70-79 |
Auto6 Rainbow windmill |
||
80-89 |
Auto7 Pixel lighting running effect 1 |
||
90-99 |
Auto8 Pixel lighting running effect 2 |
||
100-109 |
Auto9 |
||
110-119 |
... |
||
120-179 |
Auto16 Pixel lighting running effect 10 |
||
180-255 |
No Effect |
||
11 |
0-255 |
Auto adjust speed，（slow to fast） |
Auto speed |
12 |
0-5 |
According to menu settings |
Dimmer speed setting |
6-55 |
Dimming effect - turn off |
||
56-105 |
Dimming delay is fastest (DIM1) |
||
106-155 |
Dimming delay is fast (DIM2) |
||
156-205 |
Dimming delay is slow (DIM3) |
||
206-255 |
Dimming delay is slowest(DIM4) |
|
4CH(RGBW) | |||
CH |
Data |
Channel function |
Instruction |
1 |
0-255 |
0-100%，RED |
|
2 |
0-255 |
0-100%，GREEN |
|
3 |
0-255 |
0-100%，BLUE |
|
4 |
0-255 |
0-100%, WHITE |
|
|
6CH |
|
|
|
CH |
Data |
Channel function |
Instruction |
1 |
0-255 |
0-100%，Master dimmer |
Master dimmer |
2 |
0-255 |
Strobe |
Strobe |
3 |
0-255 |
0-100%，RED |
|
4 |
0-255 |
0-100%，GREEN |
|
5 |
0-255 |
0-100%，BLUE |
|
6 |
0-255 |
0-100%, WHITE |
|
|
8CH(Left and Right screen) | |||
CH |
Data |
Channel function |
Instruction |
1 |
0-255 |
0-100%，RED |
The Left screen |
2 |
0-255 |
0-100%，GREEN |
|
3 |
0-255 |
0-100%，BLUE |
|
4 |
0-255 |
0-100%, WHITE |
|
5 |
0-255 |
0-100%，RED |
The Right screen |
6 |
0-255 |
0-100%，GREEN |
|
7 |
0-255 |
0-100%，BLUE |
|
8 |
0-255 |
0-100%, WHITE |
|
32CH(Full Pixel) | |||
CH |
Data |
Channel function |
Instruction |
1 |
0-255 |
0-100%，Red 1 |
|
2 |
0-255 |
0-100%，Green 1 |
|
3 |
0-255 |
0-100%，Blue 1 |
|
4 |
0-255 |
0-100%，White 1 |
|
5 |
0-255 |
0-100%，Red 2 |
|
6 |
0-255 |
0-100%，Green 2 |
|
7 |
0-255 |
0-100%，Blue 2 |
|
8 |
0-255 |
0-100%，White 2 |
|
... |
..... |
0-100%，Red n/Green n/Blue n/White n |
|
29 |
0-255 |
0-100%，Red 8 |
|
30 |
0-255 |
0-100%，Green 8 |
|
31 |
0-255 |
0-100%，Blue 8 |
|
32 |
0-255 |
0-100%，White8 |
|
|
34CH(Full Pixel with strobe) | |||
CH |
Data |
Channel function |
Instruction |
1 |
0-255 |
0-100%，Master dimmer |
Master dimmer |
2 |
0-255 |
Strobe |
Strobe |
3 |
0-255 |
0-100%，Red 1 |
|
4 |
0-255 |
0-100%，Green 1 |
|
5 |
0-255 |
0-100%，Blue 1 |
|
6 |
0-255 |
0-100%，White 1 |
|
7 |
0-255 |
0-100%，Red 2 |
|
8 |
0-255 |
0-100%，Green 2 |
|
9 |
0-255 |
0-100%，Blue 2 |
|
10 |
0-255 |
0-100%，White 2 |
|
... |
.... |
0-100%，Redn/Green n/Blue n/White n |
|
31 |
0-255 |
0-100%，Red 8 |
|
32 |
0-255 |
0-100%，Green 8 |
|
33 |
0-255 |
0-100%，Blue 8 |
|
34 |
0-255 |
0-100%，White 8 |
|
|
40CH(Full function) | |||
CH |
Data |
Channel function |
Instruction |
1 |
0-255 |
0-100%，Master dimmer |
Master dimmer |
2 |
0-255 |
Strobe |
Strobe |
3 |
0-255 |
0-100%，Red 1 |
|
4 |
0-255 |
0-100%，Green 1 |
|
5 |
0-255 |
0-100%，Blue 1 |
|
6 |
0-255 |
0-100%，White 1 |
|
7 |
0-255 |
0-100%，Red 2 |
|
8 |
0-255 |
0-100%，Green 2 |
|
9 |
0-255 |
0-100%，Blue 2 |
|
10 |
0-255 |
0-100%，White 2 |
|
... |
..... |
0-100%，Redn/Green n/Blue n/White n |
|
31 |
0-255 |
0-100%，Red 8 |
|
32 |
0-255 |
0-100%，Green 8 |
|
33 |
0-255 |
0-100%，Blue 8 |
|
34 |
0-255 |
0-100%，White 8 |
|
35 |
0-10 |
no function |
Palette (foreground color sharing) |
11-30 |
Red - Yellow |
||
31-50 |
Yellow- Green |
||
51-70 |
Green-Cyan |
||
71-90 |
Cyan-Blue |
||
91-110 |
Blue-Magenta |
||
111-130 |
Magenta-Red |
||
131-150 |
Red-White |
||
151-255 |
Red 100%, Green 100%, Blue 100% |
||
36 |
0-10 |
Black |
Background palette |
11-30 |
Red - Yellow |
||
31-50 |
Yellow- Green |
||
51-70 |
Green-Cyan |
||
71-90 |
Cyan-Blue |
||
91-110 |
Blue-Magenta |
||
111-130 |
Magenta-Red |
||
131-150 |
Red-White |
||
151-255 |
Red 100%, Green 100%, Blue 100% |
||
37 |
0-255 |
0-100% |
Brightness of background color |
38 |
0-9 |
no function |
Auto-running control
|
10-19 |
Auto0 All cycling auto |
||
20-29 |
Auto1 whole 6-color jump |
||
30-39 |
Auto2 whole 6-color gradient |
||
40-49 |
Auto3 Whole 6-color pulse change |
||
50-59 |
Auto4 Colorful Flow |
||
60-69 |
Auto5 Colorful Convection |
||
70-79 |
Auto6 Rainbow windmill |
||
80-89 |
Auto7 Pixel lighting running effect 1 |
||
90-99 |
Auto8 Pixel lighting running effect 2 |
||
100-109 |
Auto9 |
||
110-119 |
... |
||
210-219 |
Auto21 Pixel lighting running effect 14 |
||
220-255 |
No Effect |
||
39 |
0-255 |
Auto adjust speed，（slow to fast） |
Auto speed setting |
40 |
0-5 |
According to menu settings |
Channel dimmer speed setting |
6-55 |
Dimming effect - turn off |
||
56-105 |
Dimming delay is fastest (DIM1) |
||
106-155 |
Dimming delay is fast (DIM2) |
||
156-205 |
Dimming delay is slow (DIM3) |
||
206-255 |
Dimming delay is slowest(DIM4) |
||
|
HSV | |||
CH |
Data |
Channel function |
Instruction |
1 |
0-255 |
H Hue（0-100%） |
|
2 |
0-256 |
S Saturation （0-100%） |
|
3 |
0-257 |
V Brightness（0-100%） |
|

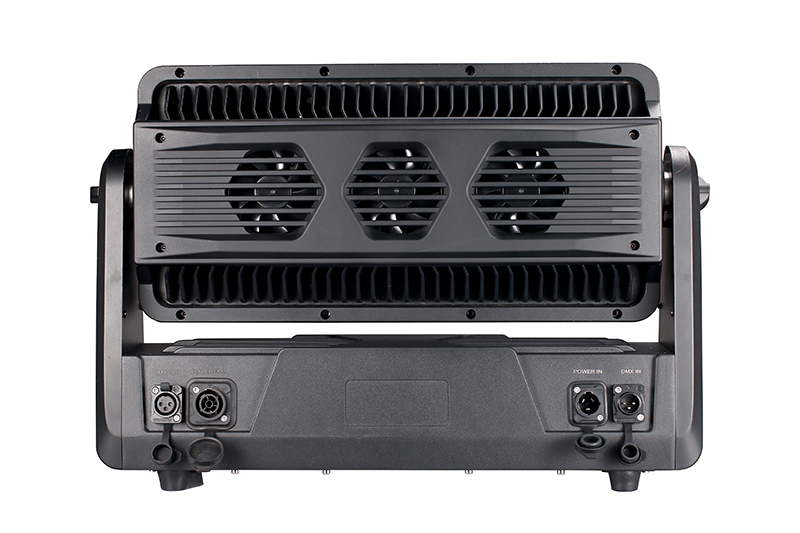

2.3 Special construction for DMX connection
☆ At last fixture, the DMX cable has to be terminated with a terminator to reduce signal errors. Solder a 120-ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-output of the last fixture.
☆ If the controller is 5-pin output, it’s necessary to use an adaptor to transfer signal from 5-pin output to 3-pin XLR-plug or you can connect cables as following:
PART 3 Display Panel Operation
3.1 Display panel menu instruction
[MENU]menu selection or return to previous menu.
[ENTER] confirm current function setting.
[UP] press [UP] through the menu list to increase/change the value of
the current function.
[DOWN] press [DOWN] through the menu list to decrease/change the value of the current function.
Main menu |
Submenu |
Specification |
Function describe |
Addr |
1-512 |
|
DMX starting address 1-512 |
Chan |
STAG |
Basic channel, default settings for appearance |
Channel mode settings, see "Channel Table" |
4CH |
|
||
6CH |
|
||
8CH |
|
||
32CH |
|
||
34CH |
|
||
40CH |
|
||
HSV |
|
||
Auto |
Au 0 |
S000-255（slow-fast） |
All cycling auto |
Au 1 |
S000-255（slow-fast） |
whole 6-color jump |
|
Au 2 |
S000-255（slow-fast） |
whole 6-color gradient |
|
Au 3 |
S000-255（slow-fast） |
Whole 6-color pulse change |
|
Au 4 |
S000-255（slow-fast） |
Colorful Flow |
|
Au 5 |
S000-255（slow-fast） |
Colorful Convection |
|
Au 6 |
S000-255（slow-fast） |
Rainbow windmill |
|
Au 7 |
S000-255（slow-fast） |
Pixel lighting running effect 1 |
|
Au 8 |
S000-255（slow-fast） |
Pixel lighting running effect 2 |
|
... |
|
|
|
Au 20 |
S000-255（slow-fast） |
Pixel lighting running effect 14 |
|
Stat |
C 01-15 |
C.01-15 |
This menu is predefined color mode. After entering, it will automatically send data as host, totaling 15 colors. |
R000-255 |
R.000-255 |
This menu is in static color mode and automatically sends data to slaves after entering. Each color can be adjusted arbitrarily. |
|
G000-255 |
G.000-255 |
||
B000-255 |
B.000-255 |
||
W000-255 |
W.000-255 |
||
St00 |
ST.00-20 |
0-20Hz Strobe frequency setting |
|
Dimm |
OFF |
|
In channel dimming speed setting, DIM_OFF indicates that the brightness value is instantaneous excessive, DIM1 is fast, DIM2 is fast, DIM3 is slow, and DIM4 is the slowest. (Control channel dimming)） |
DIM1 |
|
||
DIM2 |
|
||
DIM3 |
|
||
DIM4 |
|
||
bacE |
OFF |
|
Delay 30 seconds to extinguish screen |
ON |
|
Back light lights on |
|
Info |
Auto |
|
Manufacturer Testing Mode |
Hour |
|
Lighting service life |
|
Vers |
|
Software version |
|
Temp |
|
Internal temperature |
|
Defa |
No |
|
Not restore factory value |
Yes |
|
All parameters are restored to factory value |
AOPU 7x40W 4In1 Bee Eye LED Mini Moving Head Light With CTO Wash Zoom RGBW Beam Stage Light
AOPU 19x15W Bee Eye K10 LED RGBW 4 in 1 Zoom Moving Head for DJ Concert
AOPU Waterproof 18 Pcs 10W LED Par Light RGBW 4In1 IP65 LED Par Can DMX Light for Wedding Party Parking Light
31x10w Cool White or Warm White Dmx Led Car Show Light for Theater Car Exhibition Show
Guangzhou Aopu Lighting Equipment Co., Ltd. offers a wide range of high-quality stage lighting products including LED lights, waterproof moving head lights, and more. Tailored solutions for theaters, concerts, and events.
3f-4f, No. 2 Building, Yongyi Road, Guangzhou, Guangdong, China
Copyright © 2025 Guangzhou Aopu Lighting Equipment Co., Ltd. All right reserved Privacy Policy
EN
